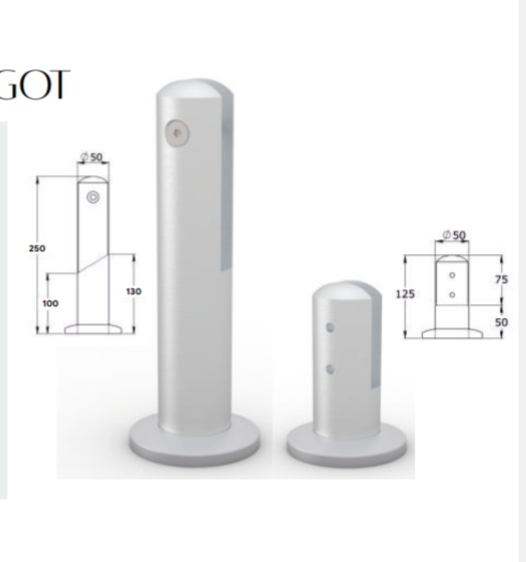

HEAVY DUTY GLASS SPIGOT

HEAVY DUTY GLASS SPIGOT Specification

Size
4,6,

Technics
Casting

Rust Proof
No

Finishing
aluminium material

Width
250 Millimeter (mm)

Open Style
Inward/ Outward, Horizontal, Automatic

Style
Customized

Color
Brown

Feature
Easily Assembled

Gross Weight
2-3 kg each

Frame Material
Aluminum Alloy

Type
Other

Material
Aluminum Alloy

Surface Treatment
Powder Coated

Height
4.6 Inch (in)

Length
250 Millimeter (mm)

Processing
Hand Made

Thickness
1.5 Millimeter (mm)

Shape
round , square

Suitable For
Residential & Commercial Use

Load Bearing Capacity
100-150 kg per spigot

Clamp Technology
Non-Slip Rubber Gaskets

Mounting
Base Plate / Core Drill Available

Application
Swimming Pool Fences, Balconies, Staircases, Decks

Accessories Included
Stainless Steel Fixing Screws & Gaskets

Temperature Resistance
-40C to +80C

Glass Installation
No holes required in glass

HEAVY DUTY GLASS SPIGOT Trade Information

Minimum Order Quantity
50 Pieces

FOB Port
mundra port

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Australia, North America

Main Domestic Market
All India

About HEAVY DUTY GLASS SPIGOT

An aluminium heavy duty glass spigot is manufactured from high-strength aluminum alloy with a thicker body and stronger internal clamping system. It is used as a base-mounted bracket that grips glass panels firmly, providing stability and safety in frameless railing systems.

These spigots are engineered to handle higher loads and larger glass sizes compared to standard aluminum spigots.

Key Features

Material: Heavy-grade aluminum alloy
Build: Thick, reinforced structure for extra strength
Glass Thickness Support: Typically 10mm to 12mm (can support laminated glass like 6+6mm or 8+8mm)
Finish Options:
- Powder-coated (black, white, custom colors)
- Anodized aluminum (corrosion-resistant)
Design: Frameless, modern, minimal look
Mounting Type:
- Floor-mounted (top mount)
- Side-mounted (in some designs)

Installation

Fixed to concrete or steel base using anchor bolts
Glass panel is inserted into the slot
Secured with high-pressure rubber gaskets or clamp system
Allows slight adjustment for alignment

Applications

Balcony railings
Terrace and rooftop railings
Staircase glass railings
Pool fencing (moderate environments)
Commercial spaces and walkways

Advantages

Lightweight yet strong (easier handling than stainless steel)
Good corrosion resistance with coating/anodizing
Cost-effective compared to heavy-duty stainless steel
Modern frameless appearance
Easy installation and maintenance

Limitations

Lower strength than heavy-duty stainless steel (SS 316) for extreme loads
Coating damage may reduce corrosion resistance over time
Not ideal for high-wind or coastal environments unless specially treated

Versatile and Secure Glass Mounting

The spigot's base plate or core drill mounting options provide flexibility for different installation scenarios. Its advanced clamp technology, featuring rubber gaskets, ensures no holes are needed in the glass, safeguarding both security and glass integrity. Perfect for hassle-free assembly on decks, balconies, and pool fences.

Crafted for Durability and Adaptability

Constructed from 1.5 mm thick aluminium alloy and finished with powder coating, this spigot resists corrosion and rust, even in extreme temperatures from -40C to +80C. The robust design accommodates personalized style choices in shape and installation direction, making it suitable for any architectural preference.

Engineered for Residential and Commercial Spaces

With a load bearing capacity of 100-150 kg and customizable style options, these spigots are ideal for both residential renovations and commercial projects. Hand-crafted and easily assembled, each spigot includes all necessary mounting hardware, ensuring a streamlined installation process for distributors, suppliers, and end-users alike.

FAQ's of HEAVY DUTY GLASS SPIGOT:

Q: How is the Heavy Duty Glass Spigot installed without drilling holes in the glass?

A: The spigot uses an advanced clamp system with non-slip rubber gaskets, allowing it to firmly grip the glass panels without any need for drilling holes, making installation quicker and preserving glass integrity.

Q: What types of applications are suitable for these glass spigots?

A: These spigots are designed for a range of uses including swimming pool fences, balconies, staircases, decks, and other glass partition installations in both residential and commercial settings.

Q: When should I choose a base plate versus a core drill mounting?

A: Use base plate mounting for surface installations (e.g., decks or floors), and choose core drill mounting when embedding into concrete or other solid surfaces, offering versatile solutions for varying installation requirements.

Q: Where are these glass spigots commonly installed?

A: They are commonly used in outdoor and indoor environments such as around swimming pools, on balconies, stair railings, decks, and terraces thanks to their robust, rust-proof design and adaptability.

Q: What is the process for assembling the spigot and installing glass panels?

A: Simply mount the spigot using the included stainless steel screws, insert the glass into the clamp, and secure with the non-slip gaskets provided for a stable and safe installation. No special tools or glass modifications are required.

Q: How does the spigot benefit commercial and residential users?

A: The spigot's heavy load capacity, corrosion resistance, and customizable style offer safety, durability, and aesthetic flexibility, meeting the needs of high-traffic commercial spaces and tailored residential designs alike.
